Working with multiple data frames

Bard College | Introduction to Data Analytics

Basic Idea

We have multiple data frames…..

and we want to bring them together

Download the data here.

Data: Women in science

Information on 10 women in science who changed the world¹

name
Ada Lovelace
Marie Curie
Janaki Ammal
Chien-Shiung Wu
Katherine Johnson
Rosalind Franklin
Vera Rubin
Gladys West
Flossie Wong-Staal
Jennifer Doudna

professions

# A tibble: 10 × 2
   name               profession
   <chr>              <chr>
 1 Ada Lovelace       Mathematician
 2 Marie Curie        Physicist and Chemist
 3 Janaki Ammal       Botanist
 4 Chien-Shiung Wu    Physicist
 5 Katherine Johnson  Mathematician
 6 Rosalind Franklin  Chemist
 7 Vera Rubin         Astronomer
 8 Gladys West        Mathematician
 9 Flossie Wong-Staal Virologist and Molecular Biologist
10 Jennifer Doudna    Biochemist

dates

# A tibble: 8 × 3
  name               birth_year death_year
  <chr>                   <dbl>      <dbl>
1 Janaki Ammal             1897       1984
2 Chien-Shiung Wu          1912       1997
3 Katherine Johnson        1918       2020
4 Rosalind Franklin        1920       1958
5 Vera Rubin               1928       2016
6 Gladys West              1930         NA
7 Flossie Wong-Staal       1947         NA
8 Jennifer Doudna          1964         NA

works

# A tibble: 9 × 2
  name               known_for
  <chr>              <chr>
1 Ada Lovelace       first computer algorithm
2 Marie Curie        theory of radioactivity,  discovery of elements polonium a…
3 Janaki Ammal       hybrid species, biodiversity protection
4 Chien-Shiung Wu    confim and refine theory of radioactive beta decy, Wu expe…
5 Katherine Johnson  calculations of orbital mechanics critical to sending the …
6 Vera Rubin         existence of dark matter
7 Gladys West        mathematical modeling of the shape of the Earth which serv…
8 Flossie Wong-Staal first scientist to clone HIV and create a map of its genes…
9 Jennifer Doudna    one of the primary developers of CRISPR, a ground-breaking…

Desired output

# A tibble: 10 × 5
   name               profession                 birth_year death_year known_for
   <chr>              <chr>                           <dbl>      <dbl> <chr>
 1 Ada Lovelace       Mathematician                      NA         NA first co…
 2 Marie Curie        Physicist and Chemist              NA         NA theory o…
 3 Janaki Ammal       Botanist                         1897       1984 hybrid s…
 4 Chien-Shiung Wu    Physicist                        1912       1997 confim a…
 5 Katherine Johnson  Mathematician                    1918       2020 calculat…
 6 Rosalind Franklin  Chemist                          1920       1958 <NA>
 7 Vera Rubin         Astronomer                       1928       2016 existenc…
 8 Gladys West        Mathematician                    1930         NA mathemat…
 9 Flossie Wong-Staal Virologist and Molecular …       1947         NA first sc…
10 Jennifer Doudna    Biochemist                       1964         NA one of t…

Inputs, reminder

names(professions)

[1] "name"       "profession"

names(dates)

[1] "name"       "birth_year" "death_year"

names(works)

[1] "name"      "known_for"

nrow(professions)

[1] 10

nrow(dates)

[1] 8

nrow(works)

[1] 9

Joining data frames

something_join(x, y)

Mutating Joins

left_join(): all rows from x
right_join(): all rows from y
full_join(): all rows from both x and y
inner_join(): all rows from x where there are matching values in y, return all combination of multiple matches in the case of multiple matches

Filtering Joins

semi_join(): all rows from x where there are matching values in y, keeping just columns from x
anti_join(): return all rows from x where there are not matching values in y, never duplicate rows of x
…and more

Key arguments for joining data frames

Basic set up with two tables

something_join(x, y)

Using piping and specifying the shared variable we use to join (aka “join key”)

x |>
  something_join(y, by = "join_id_variable")

New more preferred approach:

x |>
  something_join(y, by = join_by(join_id_variable))

Arguments for joining data frames when join keys do not match

When they are not spelled the same

x |>
  something_join(y, by = join_by(join_id_variable1 == join_id_variable1_alternative_spelling))

Arguments for joining data frames by two join keys

When you need to join by two keys

x |>
  something_join(y, by = join_by(ariable1, variable2))

Setup

For the next few slides…

x <- tibble(
  id = c(1, 2, 3),
  value_x = c("x1", "x2", "x3")
  )

# A tibble: 3 × 2
     id value_x
  <dbl> <chr>
1     1 x1
2     2 x2
3     3 x3

y <- tibble(
  id = c(1, 2, 4),
  value_y = c("y1", "y2", "y4")
  )

# A tibble: 3 × 2
     id value_y
  <dbl> <chr>
1     1 y1
2     2 y2
3     4 y4

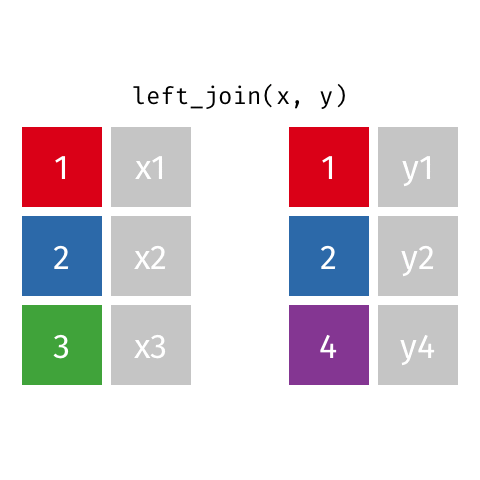

`left_join()`

left_join(x, y)

# A tibble: 3 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     3 x3      <NA>

Keep all rows from x: left_join(x, y)

`left_join()`

professions %>%
  left_join(dates, by = "name")

# A tibble: 10 × 4
   name               profession                         birth_year death_year
   <chr>              <chr>                                   <dbl>      <dbl>
 1 Ada Lovelace       Mathematician                              NA         NA
 2 Marie Curie        Physicist and Chemist                      NA         NA
 3 Janaki Ammal       Botanist                                 1897       1984
 4 Chien-Shiung Wu    Physicist                                1912       1997
 5 Katherine Johnson  Mathematician                            1918       2020
 6 Rosalind Franklin  Chemist                                  1920       1958
 7 Vera Rubin         Astronomer                               1928       2016
 8 Gladys West        Mathematician                            1930         NA
 9 Flossie Wong-Staal Virologist and Molecular Biologist       1947         NA
10 Jennifer Doudna    Biochemist                               1964         NA

Keep all rows from x: left_join(professions, dates)

Let’s try out some more reshaping and a left join

First, be specific about join variables
- Why? ID variables might not have the same spelling

professions %>%
  left_join(dates, by = c("name" = "name"))

# A tibble: 10 × 4
   name               profession                         birth_year death_year
   <chr>              <chr>                                   <dbl>      <dbl>
 1 Ada Lovelace       Mathematician                              NA         NA
 2 Marie Curie        Physicist and Chemist                      NA         NA
 3 Janaki Ammal       Botanist                                 1897       1984
 4 Chien-Shiung Wu    Physicist                                1912       1997
 5 Katherine Johnson  Mathematician                            1918       2020
 6 Rosalind Franklin  Chemist                                  1920       1958
 7 Vera Rubin         Astronomer                               1928       2016
 8 Gladys West        Mathematician                            1930         NA
 9 Flossie Wong-Staal Virologist and Molecular Biologist       1947         NA
10 Jennifer Doudna    Biochemist                               1964         NA

`right_join()`

right_join(x, y)

# A tibble: 3 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     4 <NA>    y4

Keep all rows from y: right_join(x, y)

`right_join()`

  right_join(professions, dates)

# A tibble: 8 × 4
  name               profession                         birth_year death_year
  <chr>              <chr>                                   <dbl>      <dbl>
1 Janaki Ammal       Botanist                                 1897       1984
2 Chien-Shiung Wu    Physicist                                1912       1997
3 Katherine Johnson  Mathematician                            1918       2020
4 Rosalind Franklin  Chemist                                  1920       1958
5 Vera Rubin         Astronomer                               1928       2016
6 Gladys West        Mathematician                            1930         NA
7 Flossie Wong-Staal Virologist and Molecular Biologist       1947         NA
8 Jennifer Doudna    Biochemist                               1964         NA

Keep all rows from y: right_join(professions, dates)

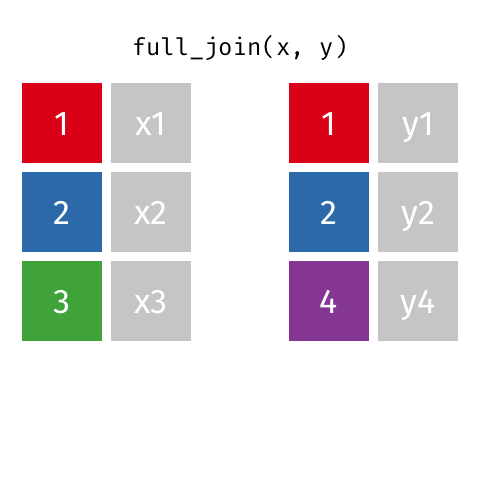

`full_join()`

full_join(x, y)

# A tibble: 4 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2
3     3 x3      <NA>
4     4 <NA>    y4

Keep all rows from both x and y

`full_join()`

full_join(dates, works)

# A tibble: 10 × 4
   name               birth_year death_year known_for
   <chr>                   <dbl>      <dbl> <chr>
 1 Janaki Ammal             1897       1984 hybrid species, biodiversity protec…
 2 Chien-Shiung Wu          1912       1997 confim and refine theory of radioac…
 3 Katherine Johnson        1918       2020 calculations of orbital mechanics c…
 4 Rosalind Franklin        1920       1958 <NA>
 5 Vera Rubin               1928       2016 existence of dark matter
 6 Gladys West              1930         NA mathematical modeling of the shape …
 7 Flossie Wong-Staal       1947         NA first scientist to clone HIV and cr…
 8 Jennifer Doudna          1964         NA one of the primary developers of CR…
 9 Ada Lovelace               NA         NA first computer algorithm
10 Marie Curie                NA         NA theory of radioactivity,  discovery…

Keep all rows from both x and y

`inner_join()`

inner_join(x, y)

# A tibble: 2 × 3
     id value_x value_y
  <dbl> <chr>   <chr>
1     1 x1      y1
2     2 x2      y2

Keeps all rows from x where there are matching values in y

Returns all combination of multiple matches in the case of multiple matches

`inner_join()`

inner_join(dates,works)

# A tibble: 7 × 4
  name               birth_year death_year known_for
  <chr>                   <dbl>      <dbl> <chr>
1 Janaki Ammal             1897       1984 hybrid species, biodiversity protect…
2 Chien-Shiung Wu          1912       1997 confim and refine theory of radioact…
3 Katherine Johnson        1918       2020 calculations of orbital mechanics cr…
4 Vera Rubin               1928       2016 existence of dark matter
5 Gladys West              1930         NA mathematical modeling of the shape o…
6 Flossie Wong-Staal       1947         NA first scientist to clone HIV and cre…
7 Jennifer Doudna          1964         NA one of the primary developers of CRI…

Keeps all rows from x where there are matching values in y

Filtering Joins

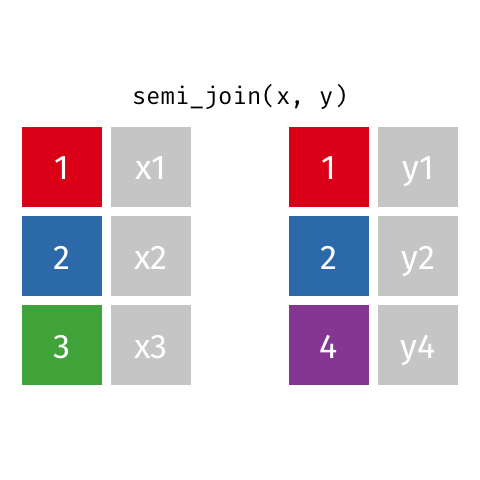

`semi_join()`

semi_join(x, y)

# A tibble: 2 × 2
     id value_x
  <dbl> <chr>
1     1 x1
2     2 x2

Keep all rows from x where there are matching values in y, keeping just columns from x.

The rows from x returned by semi_join() and inner_join() are the same. The difference is that inner_join will add columns present in y but not present in x, but a semi_join will not add any columns from y.

`semi_join()`

semi_join(dates, works)

# A tibble: 7 × 3
  name               birth_year death_year
  <chr>                   <dbl>      <dbl>
1 Janaki Ammal             1897       1984
2 Chien-Shiung Wu          1912       1997
3 Katherine Johnson        1918       2020
4 Vera Rubin               1928       2016
5 Gladys West              1930         NA
6 Flossie Wong-Staal       1947         NA
7 Jennifer Doudna          1964         NA

Keep all rows from x where there are matching values in y, keeping just columns from x

`anti_join()`

anti_join(x, y)

# A tibble: 1 × 2
     id value_x
  <dbl> <chr>
1     3 x3

Return all rows from x where there are not matching values in y, never duplicate rows of x

`anti_join()`

anti_join(dates, works)

# A tibble: 1 × 3
  name              birth_year death_year
  <chr>                  <dbl>      <dbl>
1 Rosalind Franklin       1920       1958

Return all rows from x where there are not matching values in y, never duplicate rows of x

Putting it altogether

professions %>%
  left_join(dates) %>%
  left_join(works)

# A tibble: 10 × 5
   name               profession                 birth_year death_year known_for
   <chr>              <chr>                           <dbl>      <dbl> <chr>
 1 Ada Lovelace       Mathematician                      NA         NA first co…
 2 Marie Curie        Physicist and Chemist              NA         NA theory o…
 3 Janaki Ammal       Botanist                         1897       1984 hybrid s…
 4 Chien-Shiung Wu    Physicist                        1912       1997 confim a…
 5 Katherine Johnson  Mathematician                    1918       2020 calculat…
 6 Rosalind Franklin  Chemist                          1920       1958 <NA>
 7 Vera Rubin         Astronomer                       1928       2016 existenc…
 8 Gladys West        Mathematician                    1930         NA mathemat…
 9 Flossie Wong-Staal Virologist and Molecular …       1947         NA first sc…
10 Jennifer Doudna    Biochemist                       1964         NA one of t…

Case study: Student records

Student records

Have:
- Enrollment: official university enrollment records
- Survey: Student provided info,
  - missing students who never filled it out
  - includes students who filled it out but dropped the class
Want: Survey info for all enrolled in class, and only those students.

enrollment

# A tibble: 3 × 2
     id name
  <dbl> <chr>
1     1 Grace Hopper
2     2 Pink!
3     3 Fei-Fei Li

survey

# A tibble: 4 × 3
     id name     username
  <dbl> <chr>    <chr>
1     2 Pink!    pinkmusic
2     3 Fei-Fei  feifei
3     4 Rosalind queenofdna
4     5 Jean     programminglangs

What type of join should we set up?

Student records

In class
Survey missing
Dropped

enrollment %>%
  left_join(survey, by = "id")

# A tibble: 3 × 4
     id name.x       name.y  username
  <dbl> <chr>        <chr>   <chr>
1     1 Grace Hopper <NA>    <NA>
2     2 Pink!        Pink!   pinkmusic
3     3 Fei-Fei Li   Fei-Fei feifei

enrollment %>%
  anti_join(survey, by = "id")

# A tibble: 1 × 2
     id name
  <dbl> <chr>
1     1 Grace Hopper

survey %>%
  anti_join(enrollment, by = "id")

# A tibble: 2 × 3
     id name     username
  <dbl> <chr>    <chr>
1     4 Rosalind queenofdna
2     5 Jean     programminglangs

Case study: Grocery sales

Grocery sales

Have:
- Purchases: One row per customer per item, listing purchases they made
- Prices: One row per item in the store, listing their prices
Want: Total revenue

purchases

# A tibble: 5 × 2
  customer_id item
        <dbl> <chr>
1           1 bread
2           1 milk
3           1 banana
4           2 milk
5           2 toilet paper

prices

# A tibble: 5 × 2
  item         price
  <chr>        <dbl>
1 avocado       0.5
2 banana        0.15
3 bread         1
4 milk          0.8
5 toilet paper  3

What type of join should we use?

Grocery sales

Total revenue
Revenue per customer

purchases %>%
  left_join(prices)

# A tibble: 5 × 3
  customer_id item         price
        <dbl> <chr>        <dbl>
1           1 bread         1
2           1 milk          0.8
3           1 banana        0.15
4           2 milk          0.8
5           2 toilet paper  3

purchases %>%
  left_join(prices) %>%
  summarize(total_revenue = sum(price))

# A tibble: 1 × 1
  total_revenue
          <dbl>
1          5.75

purchases %>%
  left_join(prices)

# A tibble: 5 × 3
  customer_id item         price
        <dbl> <chr>        <dbl>
1           1 bread         1
2           1 milk          0.8
3           1 banana        0.15
4           2 milk          0.8
5           2 toilet paper  3

purchases %>%
  left_join(prices) %>%
  group_by(customer_id) %>%
  summarize(total_revenue = sum(price))

# A tibble: 2 × 2
  customer_id total_revenue
        <dbl>         <dbl>
1           1          1.95
2           2          3.8

Working with multiple data frames

Basic Idea

and we want to bring them together

Data: Women in science

Inputs

Desired output

Inputs, reminder

Joining data frames

Joining data frames

Mutating Joins

Filtering Joins

Key arguments for joining data frames

Arguments for joining data frames when join keys do not match

Arguments for joining data frames by two join keys

Setup

left_join()

left_join()

Let’s try out some more reshaping and a left join

right_join()

right_join()

full_join()

full_join()

inner_join()

inner_join()

Filtering Joins

semi_join()

semi_join()

anti_join()

anti_join()

Putting it altogether

Case study: Student records

Student records

Student records

Case study: Grocery sales

Grocery sales

Grocery sales

`left_join()`

`left_join()`

`right_join()`

`right_join()`

`full_join()`

`full_join()`

`inner_join()`

`inner_join()`

`semi_join()`

`semi_join()`

`anti_join()`

`anti_join()`
